Laser Alignment System for Solar Panels

04 Aug 2022

Laser Tools Co., Inc. has developed two new laser alignment systems for industrial PV Photo-Voltaic installation contractors and commercial installers. The SE-10 and SE-50 Solar Energy Installation Systems are used to align the support Pylons that hold the mounted solar panels. Used to survey and align multi-acre power distribution fields, the leveling adapters hold the green laser that attaches to the top of the king pylon and shoots a laser reference line over the top of the pylons for fast alignment during installation.  This positions each pylon inline in order to support the solar panels.

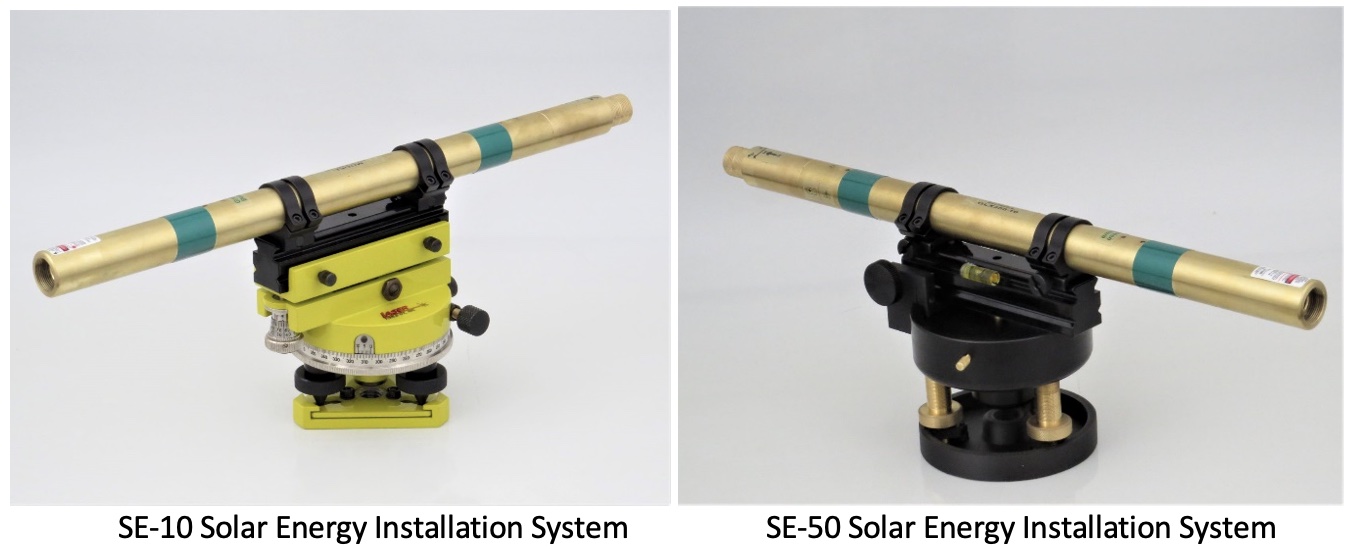

Laser Alignment System for Solar Panels

The SE-10 Solar Energy installation System includes the AP1000 Leveling Adapter Plate with a vertical micrometer and horizontal azimuth adjustment for precise laser beam alignment over 500’. The SE-50 Solar Energy Installation System is robust and includes a locking feature for stable laser dot alignment over 300’.

The SE-10 and SE-50 Solar Energy Installation Systems are battery operated, eye safe and include a hard-shell carrying cases. This makes the systems portable, field rugged and tested. These are the only two alignment laser systems manufactured world-wide for large scale, solar field and PV panel installations.

Laser Tools Co. | http://www.lasertoolsco.com
