Compact fuse for three-phase systems

20 May 2014

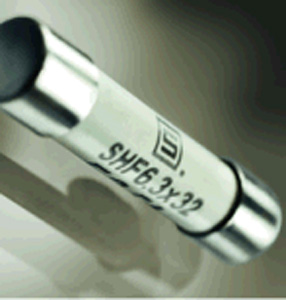

SCHURTER’s new series of SHF 6.3x32 compact fuses provides over-current protection up to 500 VAC. The high-breaking capacity of 1500 A at rated voltage safeguards electronic systems and operators in the event of a catastrophic short-circuit incident. The SHF is especially suited for primary protection of three-phase systems, as well as a wide range of industrial applications, such as for photovoltaics, frequency converters, and power electronics. Offered in 10 current ratings, ranging from 1 A to 8 A, the fuse has a time-lag characteristic according to UL 248-14. The lead-free fuse is RoHS compliant and cURus approved. The operating temperature range is -40° C to +85° C (-40° F to 185° F). SCHURTER also offers a broad range of panel or board-mount clips and holders for 6.3x32 mm fuses.

SCHURTER
http://www.schurterinc.com/new_fuses


Volume: May/June 2014
