How Much Sun Do Your Panels Really Use?

15 Mar 2020

By Richard Beal

Sunlight is fuel – especially for PV plants. As such, quantifying incoming sunlight is a core component of PV plant performance monitoring.

Typically, sensors like thermopile pyranometers and/or silicon reference cells are deployed throughout a PV plant to provide continuous, near real-time measurements of global solar irradiance. This data is then used to model the expected output of the PV plant, and calculate useful metrics such as the performance ratio.

Given the importance of solar resource data, significant research and development has been directed towards minimizing the uncertainty of these measurements. Today, the best Class A thermopile pyranometers can achieve measurement uncertainties of less than 3 percent.

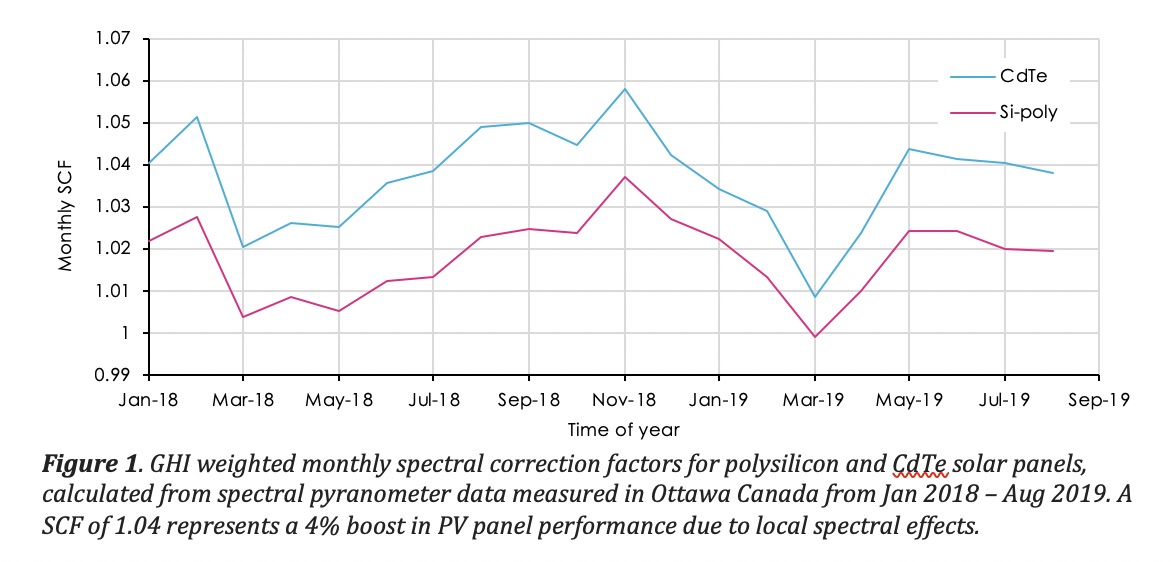

One aspect of solar irradiance that is not typically quantified by PV met stations is its spectral distribution.  Conventional wisdom holds that, given the long list of uncertainties within a typical PV performance model, spectral effects are largely irrelevant, at least for silicon solar panels. Yet, research has shown that spectral effects for silicon PV can exceed 15 percent, 5 percent, and 3 percent, on an instantaneous, monthly, and annual basis, respectively (Figure 1). As PV plant analytics become more refined, the quantification of spectral effects increasingly stands out as an area ripe for improvement.

PV is Spectral

The sun is a multi-spectral light source, emitting photons in a characteristic spectral shape across a broad range of wavelengths, from the extreme UV to the far infrared.

As this light passes through Earth’s atmosphere, the spectrum is modified – different atmospheric components (air, water vapor, aerosols, and clouds) scatter or absorb different parts of the sun’s spectrum (see image), resulting in the terrestrial solar spectrum that we observe at ground level. Due to the variable nature of these atmospheric components, and the relative movement of the sun across the sky, the terrestrial solar spectrum can vary significantly over time and across different climates.

This spectral variability wouldn’t matter if solar panels absorbed all photons with equal efficiency, but they don’t. By design, solar panels absorb light across only a portion of the solar spectrum. Each solar panel product possesses a unique spectral response, determined largely by the type of solar cells it employs.

When you combine a spectrally variable light source (the sun), with spectrally sensitive solar panels, it’s clear how this can potentially affect modern PV performance monitoring.

This spectral uncertainty will only grow more prevalent as spectrally sensitivity PV technologies gain market share (i.e. bifacials, thin-film, tandems).

Quantifying and removing spectral effects

Although spectral uncertainty isn’t routinely addressed at the PV plant scale, the research community has been deploying techniques to quantify and eliminate it for decades. In the 1980s, researchers at NREL published some of the first papers detailing the derivation and use of the Spectral Mismatch Factor (SMF). SMF was developed to help standardize and reduce the uncertainty of PV efficiency measurements by translating efficiency measurements to a reference spectral condition - the ASTM G173 spectrum, colloquially known as AM1.5.

SMF corrects for differences between the local solar (or lamp) spectrum and the ASTM G173 spectrum, as well as for differences between the spectral response of the solar panel being tested and the spectral response of the reference sensor being used to quantify the light source.

This same technique is used to standardize the power rating of commercial solar panels to Standard Test Conditions (STC).

On a PV plant, you can use the SMF in reverse to quantify spectral effects. Instead of translating an efficiency or power measurement to reference spectral conditions, SMF can be used to translate the reference efficiency, or power rating, of a solar panel to the local spectral conditions. In this application, the spectral mismatch factor is known as a spectral correction factor (SCF).

SCFs convert large spectral data sets into simple, intuitive data that can be easily used in existing PV performance models. Use of SCFs on a PV plant requires an effective, accurate, and reliable way of measuring solar spectral irradiance in the field.

Spectral correction of PV plant performance metrics

Performance metrics are vital to the effective optimization of PV plant performance. There are two primary metrics where spectral correction can be applied to provide a clearer indication of plant performance:

  1. Performance ratio (PR)

In its simplest form, the PR compares the energy output of a plant to its maximum theoretical output, based on its nameplate capacity. Just as the PR can be corrected for temperature effects, it can also be corrected for spectral effects (via the introduction of spectral correction factors into the denominator).

  1. Variance between expected and actual kWh

Comparing the actual and modelled energy generated by a PV plant over time enables operators to check that the PV plant is performing as expected. Including spectral correction factors within the plant performance model reduces noise and improves the sensitivity of this metric, allowing performance issues to be identified and corrected sooner.

Quantifying spectral correction factors on site

A number of options exist for quantifying spectral effects for PV plant operations:

Thermopile pyranometers

While Class A thermopile pyranometers can provide accurate, unbiased measurement of broadband global irradiance (as detailed above) they are not capable of quantifying spectral effects. To compensate for this, various models have been developed that use inputs such as relative humidity and/or air mass to approximate spectral correction factors for specific types of solar panels. These relatively simple models often fail to capture all spectral effects.

Reference Cell

Reference cells are essentially mini solar panels consisting of a single silicon solar cell. As such, they can effectively mimic the spectral performance of commercial silicon solar panels. However, they also possess the same degradation properties, which makes it difficult to decouple and track panel degradation over time.

Spectroradiometer

Field spectroradiometers, designed for continual outdoor use, have long been used by the PV research community. Incident light is split by a dispersive element (such as a diffraction grating) into its constituent wavelengths and directed towards an array detector. Cost, performance limitations, and data load generally make spectroradiometers impractical for widespread deployment on PV plants.

Spectral pyranometers

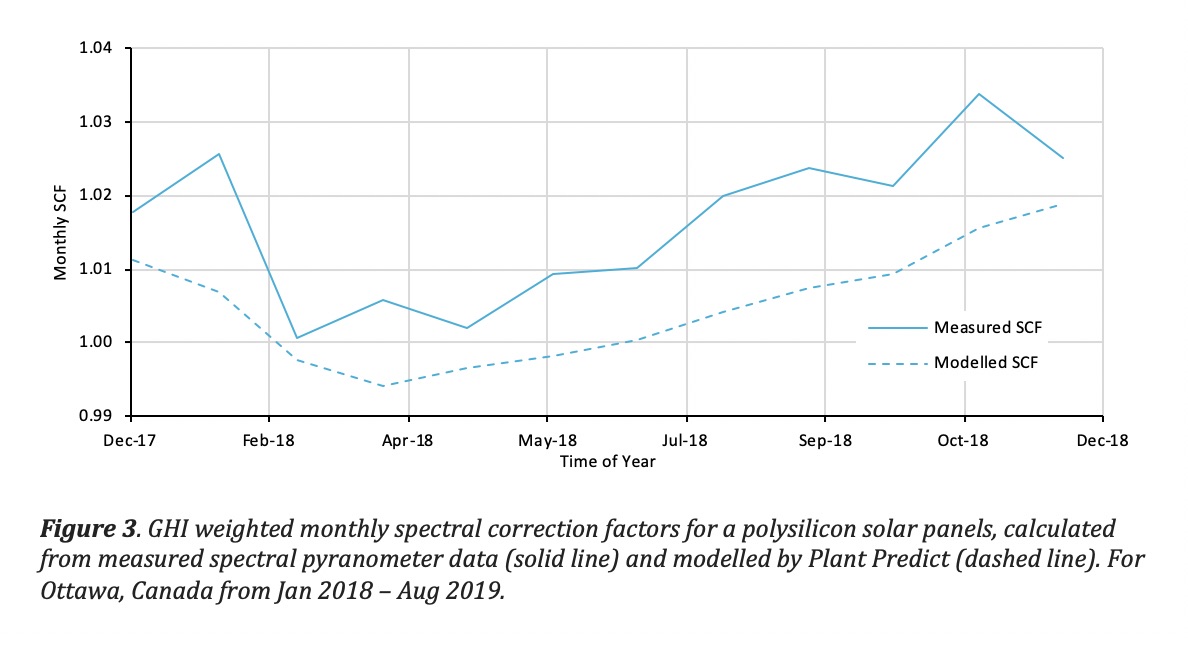

More recently, the market has produced spectral pyranometers that provide accurate measurements of total global irradiance, like a thermopile pyranometer, while also using spectral measurements to quantify the effects of local spectra on PV panels. Automated subroutines can convert this spectral information into spectral correction factors for easy use within PV performance models.

It’s important to remember that PV plants are inherently spectral; they rely on a spectrally variable fuel, and use spectrally selective solar panels. As the solar industry evolves, spectral correction increasingly stands out as an area in need of advancement. Techniques for spectral correction have existed for decades, but have not been routinely deployed on PV plants due to practical limitations. Today’s spectral pyranometers introduce an effective solution for routine spectral correction on PV plants, with tangible benefits to key performance ratios.



Richard Beal is President and CEO of Spectrafy Inc., a Canadian-based sensor manufacturer that has created a line of solar spectral sensors that enable routine spectral correction on PV plants.
