Integrated hybrid storage solution for residential and small commercial New!

14 Nov 2017

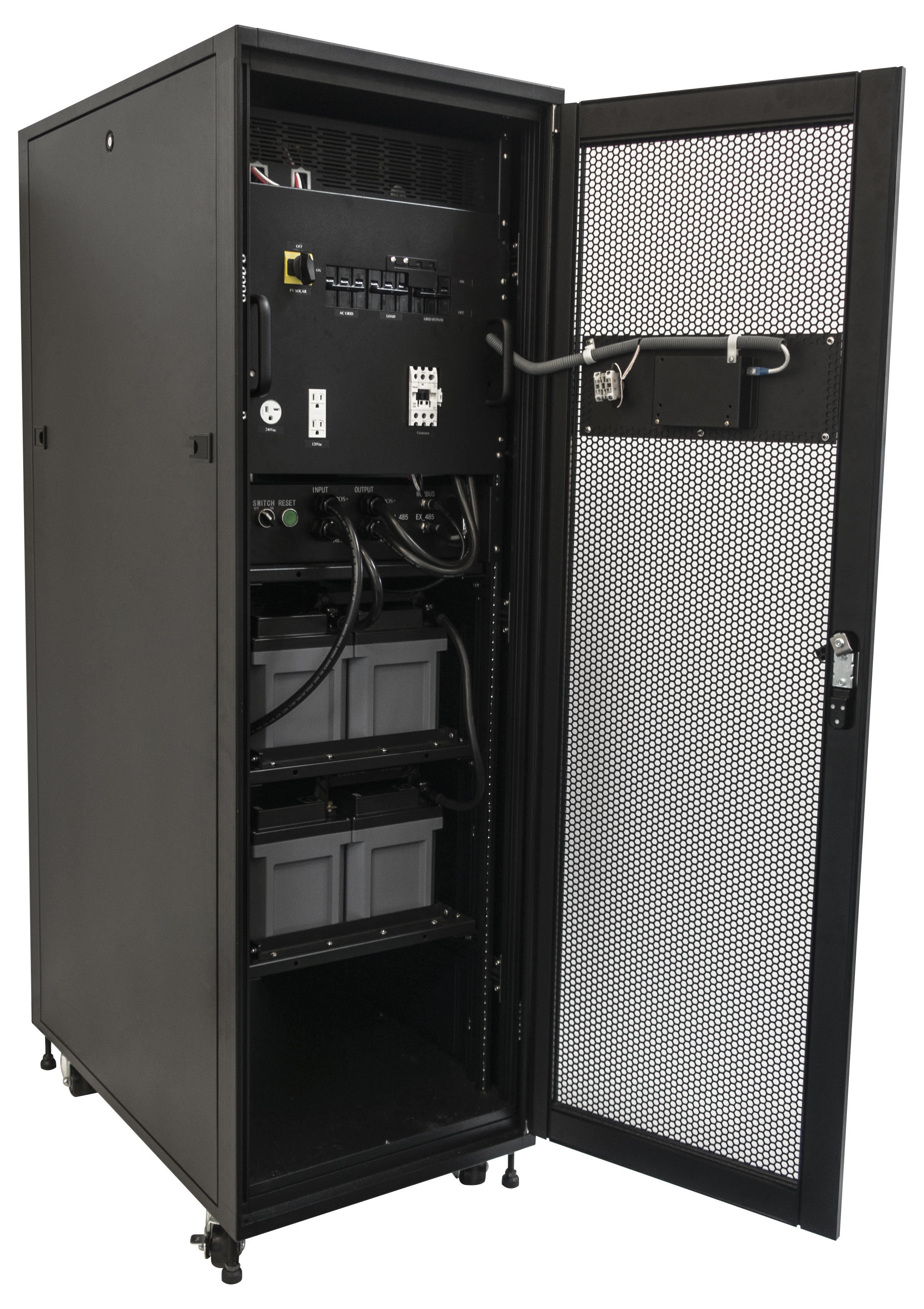

Darfon’s H200 hybrid energy storage system integrates Lithium batteries (LFP), a hybrid inverter, and BMS into a rack enclosure. Just roll it in, install the batteries, connect the wires, and then drive away. The H200 is a DC coupled system designed to provide PV supported backup and arbitrage, and is available with 10, 15, or 20kWh battery options. Critical loads are supported up to 5kW continuously and 7.5kW for 1 second. The integrated hybrid inverter handles up to 6.5kW PV with two MPPTs, and back-feeds to the grid up to 5kW.


Darfon Solar |



Volume: 2017 November/December
