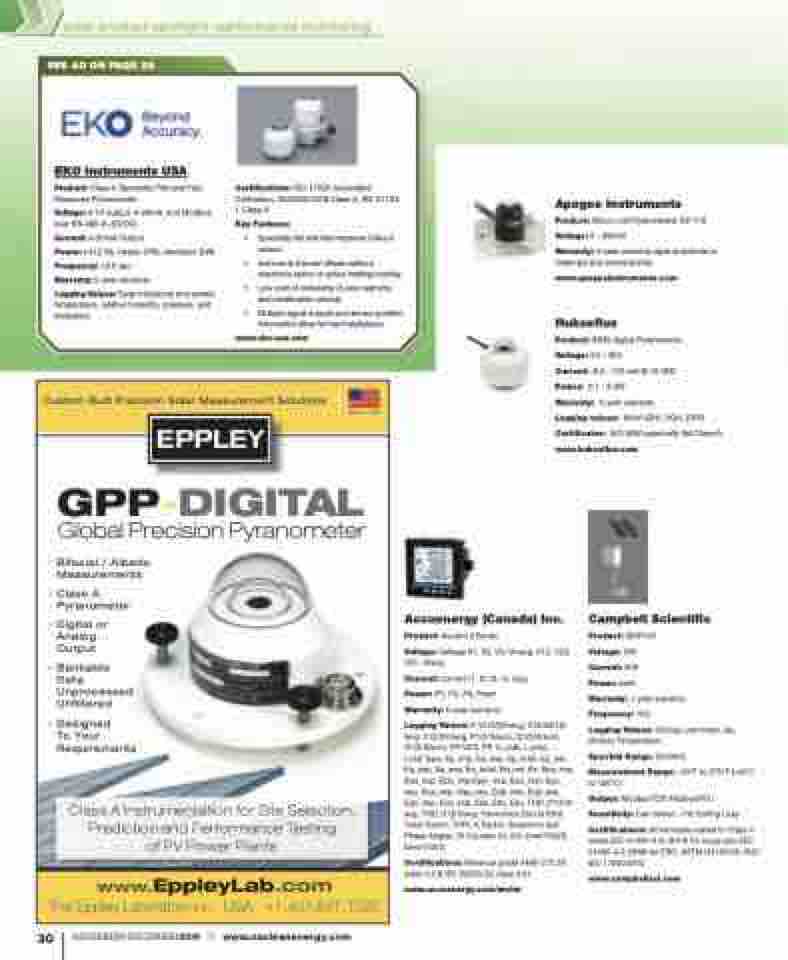

Page 30 - North American Clean Energy Novemeber December 2019 Issue

solar product spotlight: performance monitoring
SEE AD ON PAGE 28
EKO Instruments USA Product: Class A Spectrally Flat and Fast
Response Pyranometer
Voltage: 0-1V output, 4-20mA, and Modbus over RS-485 (5-30VDC)
Current: 4-20mA Output
Power: (<0.2 W), Heater (7W), Ventilator (2W) Frequency: <0.5 sec
Warranty: 5-year warranty
Logging Values: Solar Irradiance and sensor temperature, relative humidity, pressure, and inclination
Certifications: ISO 17025 Accredited Calibration, ISO9060:2018 Class A, IEC 61724- 1 Class A
Key Features:
• Spectrally flat and fast response Class A sensor;
• Immune to thermal offsets without expensive optics or active heating/cooling;
• Low cost of ownership (5-year warranty and recalibration period);
• Multiple signal outputs and sensor position information allow for fast installations.
www.eko-usa.com
Apogee Instruments
Product: Silicon-cell Pyranometer SP-110
Voltage: 0 - 250mV
Warranty: 4-year warranty against defects in materials and workmanship
www.apogeeinstruments.com
Hukseflux
Product: SR30 digital Pyranometer
Voltage: 5V – 30V
Current: 8.3 - 175 mA @ 12 VDC
Power: 0.1 - 2.3W
Warranty: 5-year warranty
Logging values: W/m2 (GHI, POA, DIFF) Certificates: ISO 9060 spectrally flat Class-A www.hukseflux.com
Custom Built Precision Solar Measurement Solutions
GPP-DIGITAL Global Precision Pyranometer
Bifacial / Albedo Measurements
Class A Pyranometer
Digital or Analog Output
Bankable Data Unprocessed Unfiltered
Designed
To Your Requirements
30
NOVEMBER•DECEMBER2019 /// www.nacleanenergy.com
Accuenergy (Canada) Inc. Product: Acuvim II Series
Voltage: Voltage V1, V2, V3, Vlnavg, V12, V23, V31, Vllavg
Current: Current I1, I2, I3, In, Iavg Power: P1, P2, P3, Psum Warranty: 5-year warranty
Logging Values: F, V1/2/3/lnavg, V12/23/13/ lavg, I1/2/3/n/avg, P1/2/3/sum, Q1/2/3/sum, S1/2/3/sum, PF1/2/3, PF, U_unbl, I_unbl,
Load Type, Ep_imp, Ep_exp, Ep_total, Ep_net, Eq_imp, Eq_exp, Eq_total, Eq_net, Es, Epa_imp, Epa_exp, Epb_imp,Epb_ exp, Epc_imp, Epc_ exp, Eqa_imp, Eqa_exp, Eqb_imp, Eqb_exp, Eqc_imp, Eqc_exp, Esa, Esb, Esc, THD_V1/2/3/ avg, THD_I1/2/3/avg, Harmonics 2nd to 63rd, Crest Factor, THFF, K Factor, Sequence and Phase Angles, DI Counter, AI, AO, Dmd P/Q/S, Dmd I1/2/3
Certifications: Revenue grade ANSI C12.20 class 0.2 & IEC 62053-22 class 0.2s
www.accuenergy.com/meter
Campbell Scientific Product: SMP100
Voltage: 50V
Current: 20A
Power: 5mA
Warranty: 1-year warranty
Frequency: 1Hz
Logging Values: Soiling Loss Index, Isc, Module Temperature
Spectral Range: 50/60Hz
Measurement Range: -40°F to 275°F (-40°C
to 135°C)
Output: ModbusTCP, ModbusRTU Sensitivity: Can detect ~1% Soiling Loss
Certifications: All terminals tested to Class 4 levels (IEC 61000-4-5: 2013) for surge and (IEC 61000-4-2:2008) for ESD, ASTM D4169-09, ISO/ IEC 17050:2010
www.campbellsci.com
Class A Instrumentation for Site Selection, Prediction and Performance Testing
of PV Power Plants
