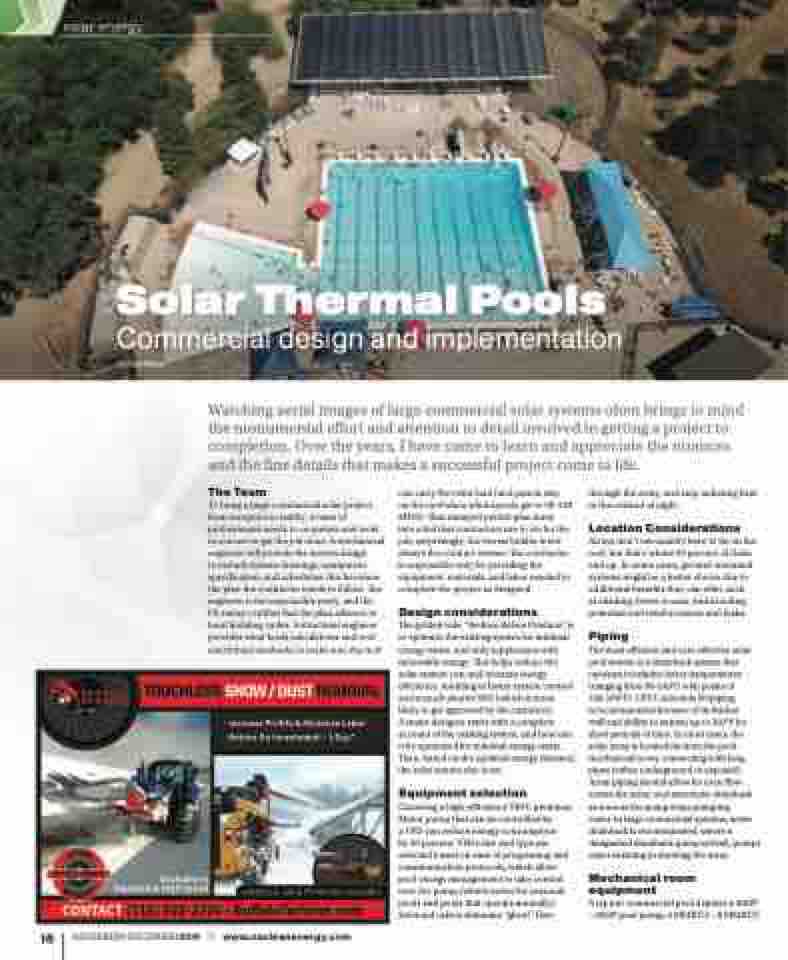

solar energy Solar Thermal Pools Commercial design and implementation by Gal Moyal Watching aerial images of large commercial solar systems often brings to mind the monumental effort and attention to detail involved in getting a project to completion. Over the years, I have come to learn and appreciate the nuances and the fine details that makes a successful project come to life. The Team To bring a large commercial solar project from inception to reality, a team of professionals needs to cooperate and work in concert to get the job done. A mechanical engineer will provide the system design to include system drawings, equipment specification, and schedules; this becomes the plan the contractor needs to follow. The engineer is the responsible party, and the PE stamp certifies that the plan adheres to local building codes. A structural engineer provides wind loads calculations and roof attachment methods, to make sure the roof can carry the extra load (and panels stay on the roof when wind speeds get to 90-120 MPH). That stamped permit plan turns into a bid that contractors use to vie for the job; surprisingly, the lowest bidder is not always the contract winner. The contractor is responsible only for providing the equipment, materials, and labor needed to complete the project as designed. Design considerations The golden rule, “Reduce Before Produce”, is to optimize the existing system for minimal energy waste, and only supplement with renewable energy. This helps reduce the solar system cost and increase energy efficiency, resulting in better system control and a much shorter ROI (which is more likely to get approved by the customer). A smart designer starts with a complete account of the existing system, and how can it be optimized for minimal energy waste. Then, based on the updated energy demand, the solar system size is set. Equipment selection Choosing a high-efficiency TEFC premium Motor pump that can be controlled by a VFD can reduce energy consumption by 40 percent. VFDs size and type are selected based on ease of programing and communication protocols, which allow pool energy management to take control over the pump (which varies for seasonal pools and pools that operate annually). Solenoid valves eliminate “ghost” flow through the array, and stop radiating heat to the cosmos at night. Location Considerations Arrays don’t necessarily have to be on the roof, but that’s where 90 percent of them end up. In some cases, ground-mounted systems might be a better choice due to additional benefits they can offer, such as shading, better access, and avoiding potential roof reinforcement and leaks. Piping The most efficient and cost-effective solar pool system is a drainback system that operates in relative lower temperatures (ranging from 80-140°F, with peaks of 160-180°F). CPVC schedule 80 piping is recommended because of its thicker wall and ability to sustain up to 200°F for short periods of time. In most cases, the solar array is located far from the pool mechanical room, connecting with long pipes (either underground or exposed). Array piping should allow for even flow across the array, and automatic drainback as soon as the pump stops pumping water. In large commercial systems, active drainback is recommended, where a designated drainback pump actively pumps water assisting in draining the array. Mechanical room equipment A typical commercial pool deploys a 30HP – 60HP pool pump, 4 MMBTU – 8 MMBTU EST. 1945 TOUCHLESS SNOW / DUST REMOVAL Available in Standard & High Speed 18 NOVEMBER•DECEMBER2019 /// www.nacleanenergy.com CONTACT (716) 592-2700 • BuffaloTurbine.com • Increase Profits & Minimize Labor • Return On Investment = 1 Day* HYDRAULIC, GAS & PTO MODELS AVAILABLE
