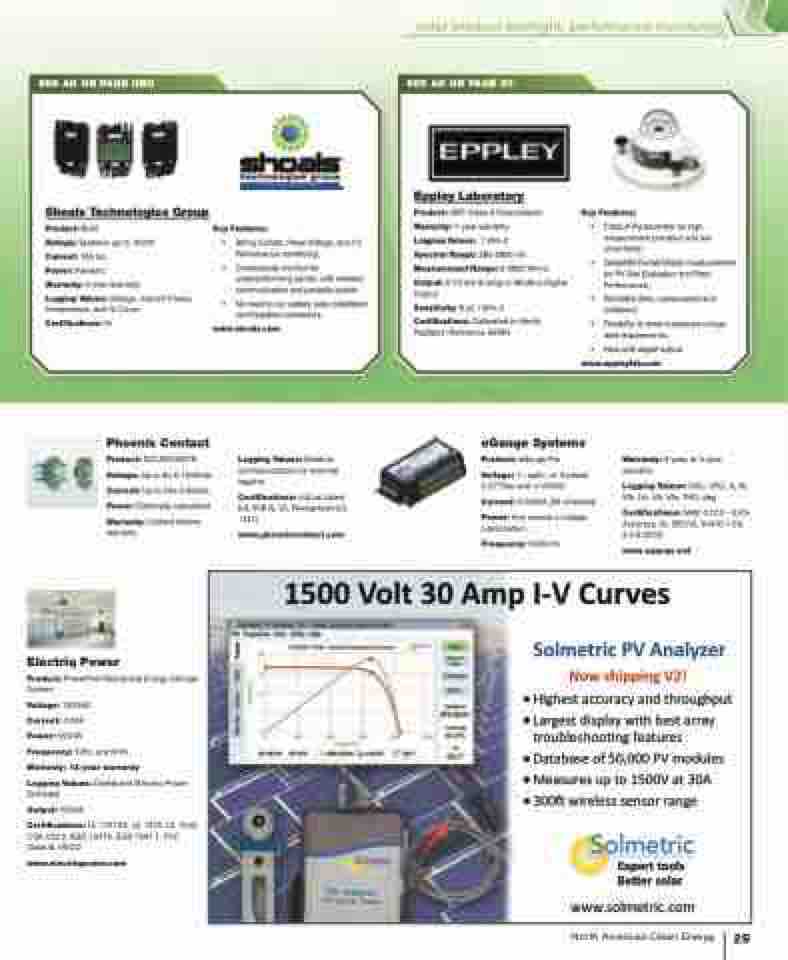

Page 29 - North American Clean Energy November December 2019 Issue

solar product spotlight: performance monitoring SEE AD ON PAGE OBC SEE AD ON PAGE 30 Shoals Technologies Group Product: BLM Voltage: Systems up to 1500V Current: 12A Isc Power: Parasitic Warranty: 5-year warranty Logging Values: Voltage, Current Power, Temperature, and IV Curve Certifications: UL Key Features: • String Current, Panel Voltage, and I-V Performance monitoring; • Continuously monitor for underperforming panels; with wireless communication and parasitic power; • No need to run cables; easy installation via integrated connectors. www.shoals.com Eppley Laboratory Product: GPP Class A Pyranometer Warranty: 1-year warranty Logging Values: .1 Wm-2 Spectral Range: 285-2800 nm Measurement Range: 0-2800 Wm-2 Output: 0-10 mV Analog or Modbus Digital Output Sensitivity: 8 μV / Wm-2 Certifications: Calibrated to World Radiation Reference (WRR) Key Features: • Class A Pyranometer for high measurement precision and low uncertainty; • Global/Bi-Facial/Albedo measurements for PV Site Evaluation and Plant Performance; • Bankable data, unprocessed and unfiltered; • Flexibility to meet customers unique data requirements; • Now with digital output. www.eppleylab.com Phoenix Contact Product: SOLARCHECK Logging Values: Modbus communications for external eGauge Systems Product: eGauge Pro Voltage: 1-, split-, or 3-phase 0-277Vac and +/-60Vdc Current: 0-6900A (30 channels) Power: Any current x voltage combination Frequency: 50/60 Hz Warranty: 2-year, or 5-year warranty Logging Values: VAC, VDC, A, W, Wh, Hz, VA, VAr, THD, deg Certifications: ANSI C12.2 - 0.5% Accuracy, UL (IEC/UL 61010-1 Ed. 3.0 B:2010) www.egauge.net Voltage: Up to 8x 0-1500Vdc Current: Up to 64x 0-20Adc Power: Externally calculated Warranty: Limited lifetime warranty logging Certifications: cULus Listed (UL 508 A), UL Recognized (UL 1741) www.phoenixcontact.com 1500 Volt 30 Amp I-V Curves Solmetric PV Analyzer Now shipping V2! Highest accuracy and throughput Largest display with best array troubleshooong features Database of 50,000 PV modules Measures up to 1500V at 30A 3000 wireless sensor range Expert tools Beeer solar www.solmetric.com Electriq Power Product: PowerPod Residential Energy Storage System Voltage: 120/240 Current: 0-30A Power: 5500W Frequency: 50Hz and 60Hz Warranty: 12-year warranty Logging Values: Dashboard (Electriq Power Software) Output: 5500W Certifications: UL 1741SA, UL 1973, UL 1642, CSA C22.2, IEEE 1547A, IEEE 1547.1, FCC Class B, HECO www.electriqpower.com North American Clean Energy 29
